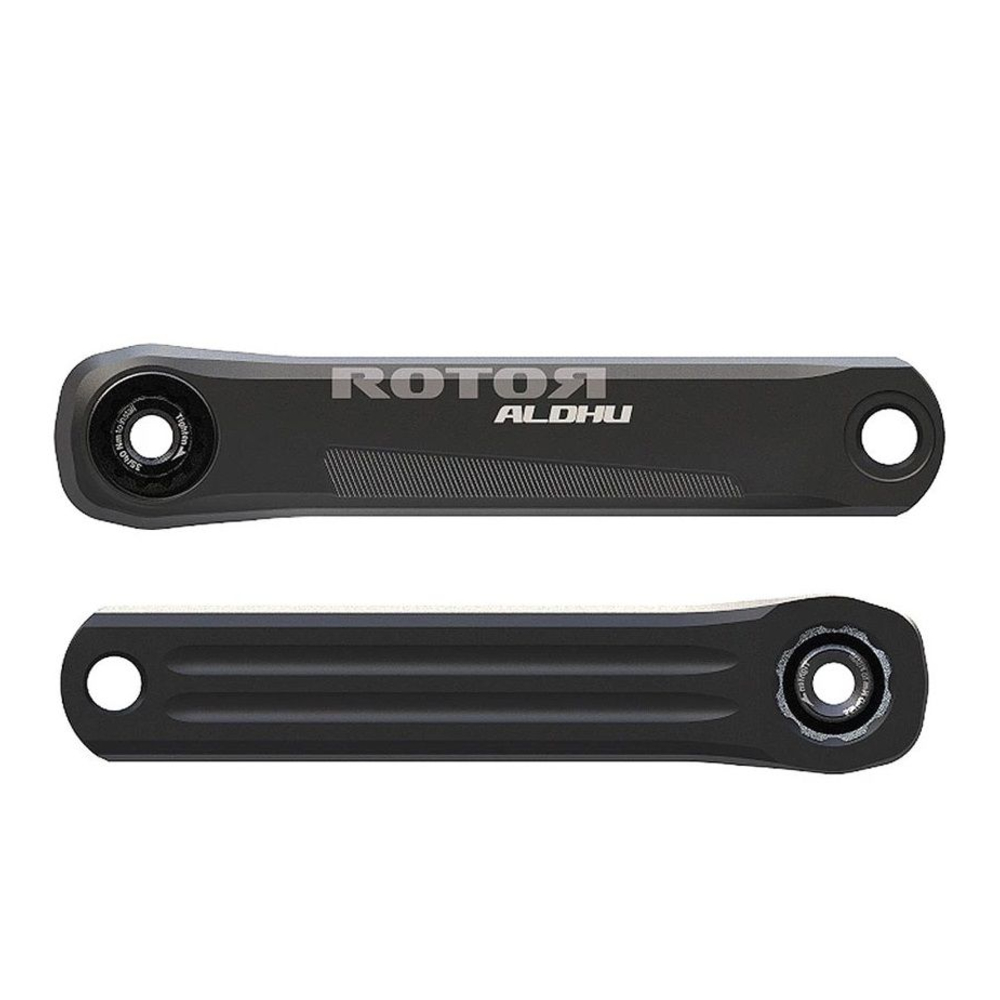

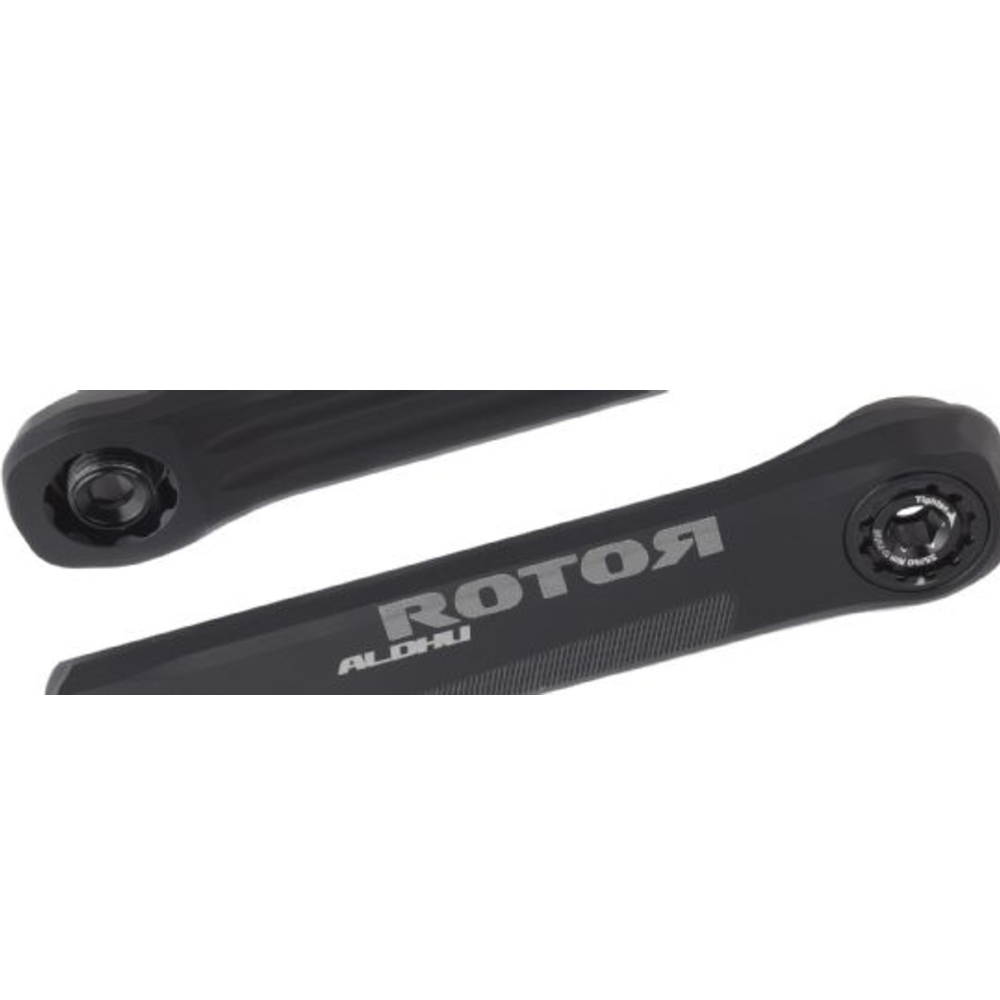

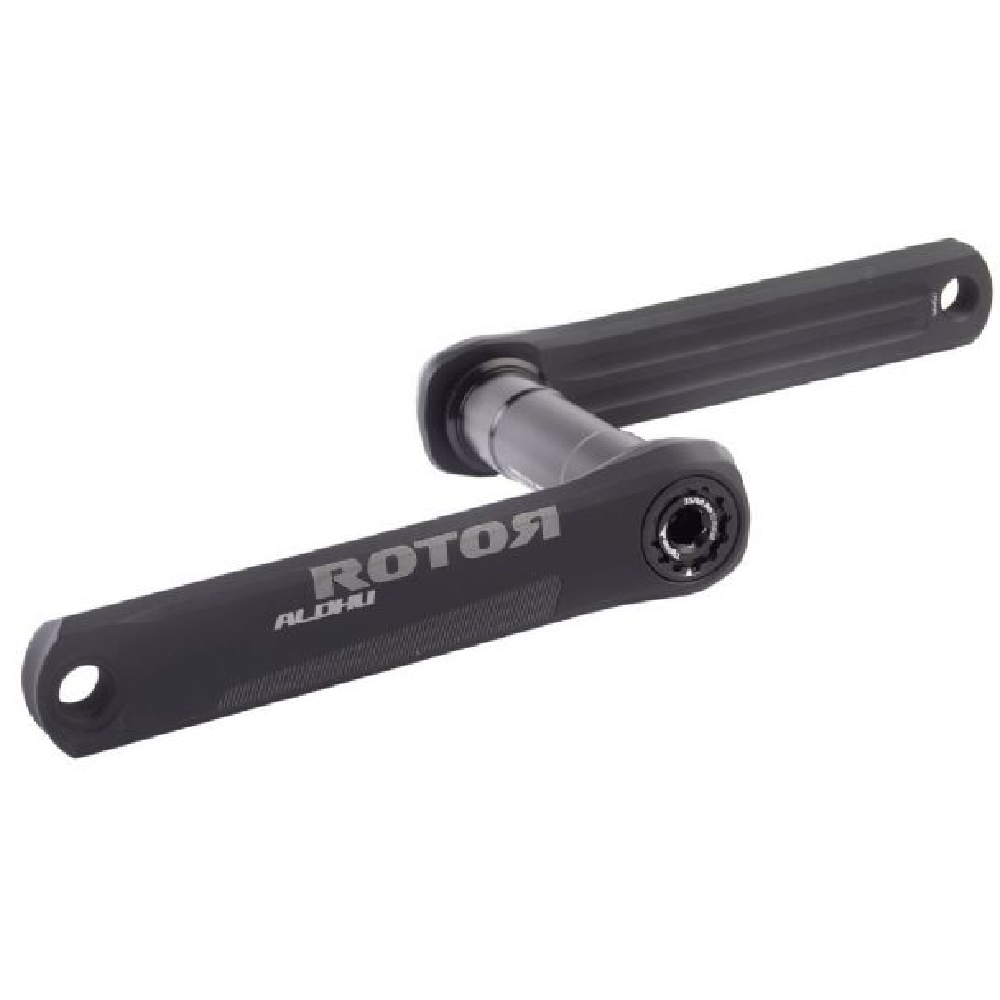

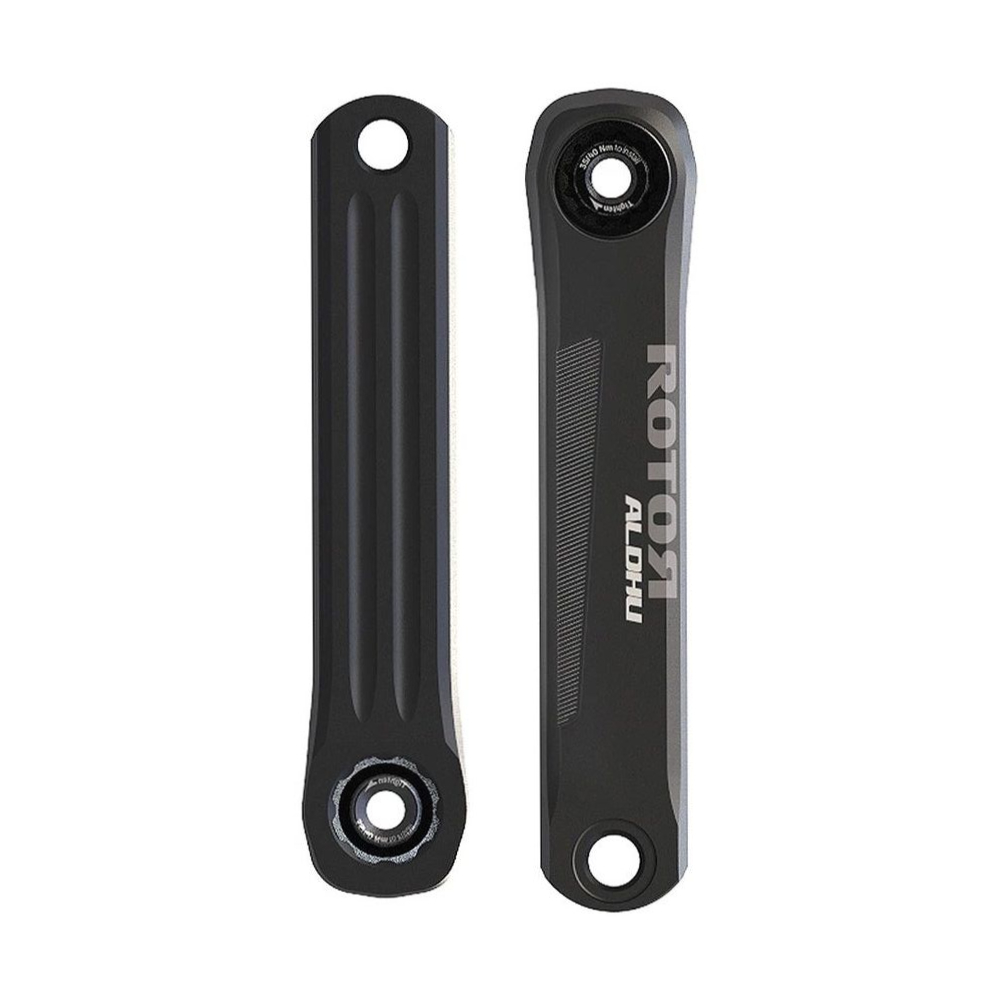

Rotor C02-102-11010-0 ALDHU Crank Arms (150 mm)

SKU: LNU-7-2023

Brand:
Rotor

Category:
Bikes / Cycling

Sub-Category:
Equipment & Accessories

The ROTOR ALDHU 150 mm crank arms are part of ROTOR’s modular ALDHU crankset system, engineered for performance road, gravel, cyclocross, and triathlon use. These arms are built from high-grade aluminum and designed to allow customization of crank setup with different spindle and spider/chainring combinations, including direct-mount and modular options. ALDHU stands for Alpe d’Huez, inspired by ROTOR’s racing heritage, and incorporates OCP Mount technology allowing fine-tuned chainring orientation when paired with Q-RINGS® or standard rings. crank arms only (spindle, spider, and chainrings not included).

PHP 15,500.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

Key Features

Modular crank arms — pair with different spindles and spiders.
OCP Mount technology — fine-tune chainring orientation for optimal pedaling efficiency.
CNC-machined 7055 aluminum — offers an excellent balance of stiffness and weight.
110×4 spider mount standard — compatible with direct-mount and modular spiders for chainrings.
1× and 2× configurability — works with single or double chainring setups depending on spider and ring choice.
Black anodized finish — corrosion-resistant and sleek.

Specifications

Part Number: C02-102-11010-0
Product Name: ROTOR ALDHU Crank Arms – 150 mm
Crank Arm Length: 150 mm
Material: CNC-machined 7055 aluminum alloy
Spindle Diameter Compatibility: 30 mm (requires separate spindle)
Chainline (2× setup): 43.5 mm (standard) / 46 mm (offset)
Chainline (1× setup): 44.5 mm (standard) / 47 mm (offset)
Q-Factor: ~147 mm (standard) / ~152 mm (offset)
Crank Mount: Standard 110×4 spider mount (direct mount or modular)
Disciplines: Road, Gravel, Cyclocross, Triathlon
Included: Left + right crank arms only (spindle, spider, chainrings not included)
