Multi-trainer freewheel body
Assembled Zwift Cog in advance for the freewheel body:
First, take the provided tool to remove the existing axle adapter on the drive side.
Then slide both the cassette and the freehub body off the axle.
Make sure to also remove the spacer from the axle.
Slide the large spacer onto the axle contained in the Zwift Cog box.
Zwift Cog v2 is installed on a new Multi-Trainer freehub body - the freehub body is not included!
Slide the Zwift Cog on and if you are using a Zwift Hub, tighten the axle adapter.
If you are using another Zwift Ready trainer, slide the thin spacer onto the axle first and then tighten the axle adapter.
Assemble your frame and hit the virtual road!
Zwift Click contains a replaceable CR2032 button cell battery. The minimum battery life before it needs to be replaced is 50 hours.

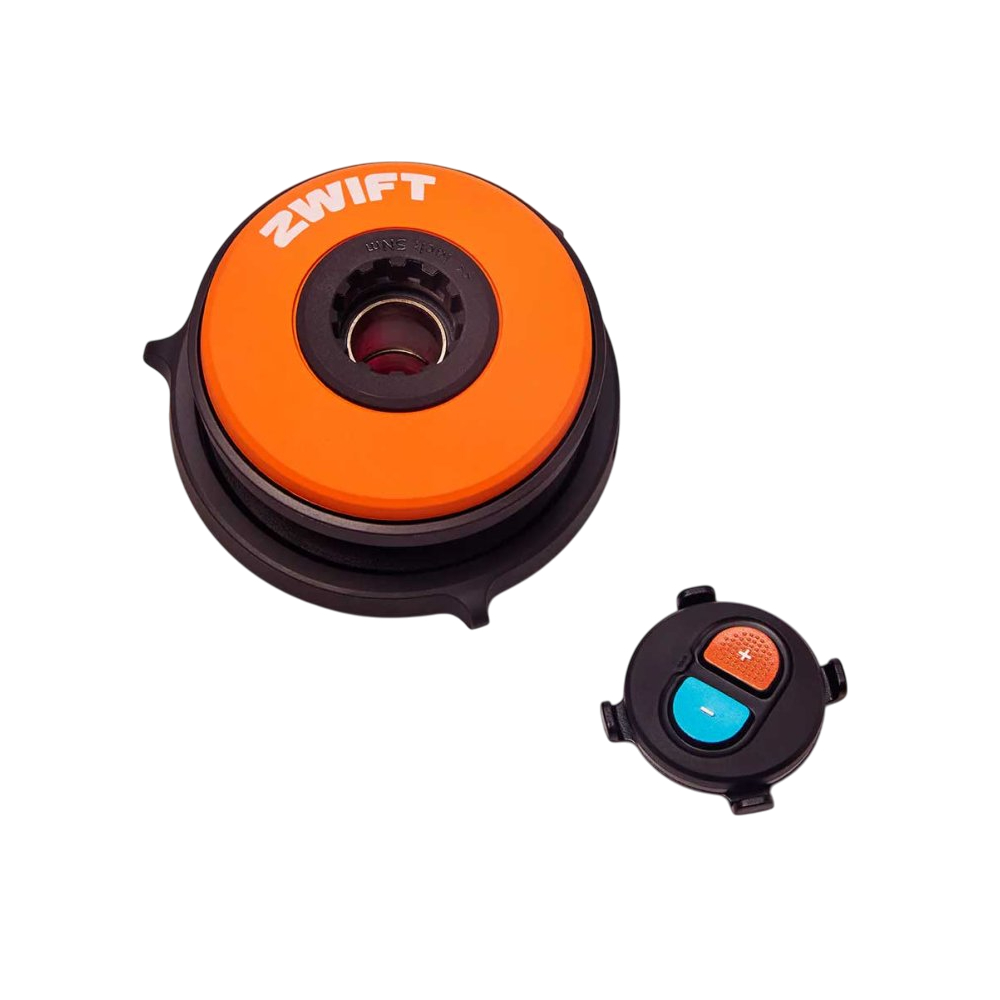

Technical specifications of the Wahoo Zwift Cog and Click Upgrade Kit
Zwift Cog v2 Specifications
Single sprocket with 14 teeth
10 sprocket positions for quick chain alignment
Designed for Shimano/SRAM freehub bodies
Weight: 140 grams
Dimensions: 103 mm x 42 mm H
Product life: Tested for > 25,000 miles
Material: Plastic housing and lockring with steel sprocket
For use with direct drive indoor trainers only
Zwift Click specifications
Communication: Bluetooth
Power supply: Battery, button cell CR2032
Product dimensions: 47 x 47 x 13 mm
Product weight: 51 grams
Battery life: > 100 hours
